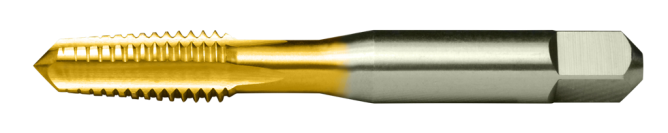

Taper Chamfer General Purpose Hand Tap

Add to Favorites

View Larger

General

Brand NameCleveland
Style #1001-TN
SetNo

Thread

Thread Tolerance2B
Thread CreationThread Cutting
Tap Interrupted ThreadNo

Specifications

Surface ConditionTiN
MaterialHSS
Tap TypeHand Tap
Tap StyleStraight Flute Hand Tap
Tap ConstructionStandard
Tap Spiral PointNo
Tap Blank ConstructionUSCTI Table 302
Tap Ground ThreadsYes
Tap ChamferTaper
Tap Truncated ThreadsNo
Flute TypeStraight
Hand of CutRight

Shank

Shank ConfigurationStraight w/ Square

Application

Material ApplicationK: Cast Iron, M: Stainless Steel, P: Steel
Depth of Cut1.5xD

Literature:

GFI SDS 01 - HSS Product - March 2025.pdf

Warnings:

This product contains Cobalt and/or Nickel and/or Lead a chemical known to the state of California to cause cancer, or birth defects or other reproductive harm. For more information: www.p65warnings.ca.gov

Category: Taps
Brand: Cleveland

Options

SKU:	Thread Size	Dec. Eq. (in)	Dec. Eq. (mm)	# of Flutes	Chamfer	H-Limit	OAL (in)	OAL (mm)	Thread Length (in)	Thread Length (mm)	Pack Qty	Min Qty
C83801	M2 x 0.4	0.0787	2.00	3	Taper	D3	1.7500	44.45	0.4400	11.18	1	1
C83383	#2-56 UNC	0.0860	2.18	3	Taper	H2	1.7500	44.45	0.4400	11.18	1	1
C83802	M2.5 x 0.45	0.0984	2.50	3	Taper	D3	1.8125	46.04	0.5000	12.70	1	1
C83384	#3-48 UNC	0.0990	2.51	3	Taper	H2	1.8125	46.04	0.5000	12.70	1	1
C83385	#3-56 UNF	0.0990	2.51	3	Taper	H2	1.8125	46.04	0.5000	12.70	1	1
C83386	#4-40 UNC	0.1120	2.84	3	Taper	H2	1.8800	47.75	0.5600	14.22	1	1
C83387	#4-48 UNF	0.1120	2.84	3	Taper	H2	1.8800	47.75	0.5600	14.22	1	1
C83803	M3 x 0.5	0.1181	3.00	3	Taper	D4	1.9400	49.28	0.6300	16.00	1	1
C83388	#5-40 UNC	0.1250	3.18	3	Taper	H2	1.9400	49.28	0.6300	16.00	1	1
C83389	#5-44 UNF	0.1250	3.18	3	Taper	H2	1.9400	49.28	0.6300	16.00	1	1
C83804	M3.5 x 0.6	0.1378	3.50	3	Taper	D4	2.0000	50.80	0.6900	17.53	1	1
C83390	#6-32 UNC	0.1380	3.51	2	Taper	H3	2.0000	50.80	0.6900	17.53	1	1
C83391	#6-32 UNC	0.1380	3.51	3	Taper	H2	2.0000	50.80	0.6900	17.53	1	1
C83392	#6-32 UNC	0.1380	3.51	3	Taper	H3	2.0000	50.80	0.6900	17.53	1	1
C83393	#6-40 UNF	0.1380	3.51	3	Taper	H2	2.0000	50.80	0.6900	17.53	1	1
C83805	M4 x 0.7	0.1575	4.00	4	Taper	D4	2.1300	54.10	0.7500	19.05	1	1
C83394	#8-32 UNC	0.1640	4.17	2	Taper	H2	2.1300	54.10	0.7500	19.05	1	1
C83395	#8-32 UNC	0.1640	4.17	2	Taper	H3	2.1300	54.10	0.7500	19.05	1	1
C83396	#8-32 UNC	0.1640	4.17	4	Taper	H2	2.1300	54.10	0.7500	19.05	1	1
C54307	#8-32 UNC	0.1640	4.17	4	Taper	H3	2.1300	54.10	0.7500	19.05	1	1
C83397	#8-36 UNF	0.1640	4.17	4	Taper	H2	2.1300	54.10	0.7500	19.05	1	1
C83398	#10-24 UNC	0.1900	4.83	4	Taper	H3	2.3800	60.45	0.8800	22.35	1	1
C83399	#10-32 UNF	0.1900	4.83	2	Taper	H3	2.3800	60.45	0.8800	22.35	1	1
C83400	#10-32 UNF	0.1900	4.83	4	Taper	H2	2.3800	60.45	0.8800	22.35	1	1
C54309	#10-32 UNF	0.1900	4.83	4	Taper	H3	2.3800	60.45	0.8800	22.35	1	1
C83806	M5 x 0.8	0.1969	5.00	4	Taper	D4	2.3800	60.45	0.8800	22.35	1	1
C83480	#12-24 UNC	0.2160	5.49	4	Taper	H3	2.3800	60.45	0.9400	23.88	1	1
C83807	M6 x 1.0	0.2362	6.00	4	Taper	D5	2.5000	63.50	1.0000	25.40	1	1
C83481	1/4"-20 UNC	0.2500	6.35	2	Taper	H3	2.5000	63.50	1.0000	25.40	1	1
C83482	1/4"-20 UNC	0.2500	6.35	3	Taper	H3	2.5000	63.50	1.0000	25.40	1	1
C83483	1/4"-20 UNC	0.2500	6.35	4	Taper	H3	2.5000	63.50	1.0000	25.40	1	1
C83484	1/4"-28 UNF	0.2500	6.35	4	Taper	H3	2.5000	63.50	1.0000	25.40	1	1
C83485	5/16"-18 UNC	0.3125	7.94	4	Taper	H3	2.7200	69.09	1.1300	28.70	1	1
C83486	5/16"-24 UNF	0.3125	7.94	4	Taper	H3	2.7200	69.09	1.1300	28.70	1	1
C83808	M8 x 1.0	0.3150	8.00	4	Taper	D5	2.7200	69.09	1.1300	28.70	1	1
C83809	M8 x 1.25	0.3150	8.00	4	Taper	D5	2.7200	69.09	1.1300	28.70	1	1
C83487	3/8"-16 UNC	0.3750	9.53	4	Taper	H3	2.9400	74.68	1.2500	31.75	1	1
C83488	3/8"-24 UNF	0.3750	9.53	4	Taper	H3	2.9400	74.68	1.2500	31.75	1	1
C83810	M10 x 1.25	0.3937	10.00	4	Taper	D5	2.9375	74.61	1.2500	31.75	1	1
C83811	M10 x 1.5	0.3937	10.00	4	Taper	D6	2.9375	74.61	1.2500	31.75	1	1
C83489	7/16"-14 UNC	0.4375	11.11	4	Taper	H3	3.1600	80.26	1.4400	36.58	1	1
C83490	7/16"-20 UNF	0.4375	11.11	4	Taper	H3	3.1600	80.26	1.4400	36.58	1	1
C83812	M12 x 1.25	0.4724	12.00	4	Taper	D5	3.3750	85.72	1.6600	42.16	1	1
C83813	M12 x 1.75	0.4724	12.00	4	Taper	D6	3.3750	85.72	1.6600	42.16	1	1
C83491	1/2"-13 UNC	0.5000	12.70	4	Taper	H3	3.3800	85.85	1.6600	42.16	1	1
C83492	1/2"-20 UNF	0.5000	12.70	4	Taper	H3	3.3800	85.85	1.6600	42.16	1	1
C83814	M14 x 1.5	0.5512	14.00	4	Taper	D6	3.5938	91.28	1.6600	42.16	1	1
C83815	M14 x 2.0	0.5512	14.00	4	Taper	D7	3.5938	91.28	1.6600	42.16	1	1
C83493	9/16"-12 UNC	0.5625	14.29	4	Taper	H3	3.5900	91.19	1.6600	42.16	1	1
C83494	5/8"-11 UNC	0.6250	15.88	4	Taper	H3	3.8100	96.77	1.8100	45.97	1	1
C83495	5/8"-18 UNF	0.6250	15.88	4	Taper	H3	3.8100	96.77	1.8100	45.97	1	1
C83816	M16 x 2.0	0.6299	16.00	4	Taper	D7	3.8125	96.84	1.8100	45.97	1	1
C83496	3/4"-10 UNC	0.7500	19.05	4	Taper	H3	4.2500	107.95	2.0000	50.80	1	1
C83497	3/4"-16 UNF	0.7500	19.05	4	Taper	H3	4.2500	107.95	2.0000	50.80	1	1
C83498	7/8"-9 UNC	0.8750	22.23	4	Taper	H4	4.6875	119.06	2.2200	56.39	1	1
C83499	7/8"-14 UNF	0.8750	22.23	4	Taper	H4	4.6875	119.06	2.2200	56.39	1	1
C83800	1-8 UNC	1.0000	25.40	4	Taper	H4	5.1250	130.17	2.5000	63.50	1	1
