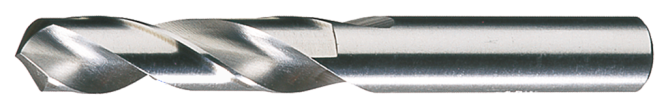

135° NAS 907 Type C Heavy-Duty Screw Machine Drill

Add to Favorites

View Larger

General

Brand NameCleveland
Style #2330

Specifications

Surface ConditionBright
MaterialHSS
Flute TypeSpiral
Hand of SpiralRight
Hand of CutRight
Drill StyleScrew Machine Drill
Drill ConstructionNAS 907 TYPE C
Point Angle135°

Shank

Shank ConfigurationStraight

Literature:

GFI SDS 01 - HSS Product - March 2025.pdf

Warnings:

This product contains Cobalt and/or Nickel and/or Lead a chemical known to the state of California to cause cancer, or birth defects or other reproductive harm. For more information: www.p65warnings.ca.gov

Category: Screw Machine Drills
Brand: Cleveland

Options

SKU:	Size (in)	Size (W/L)	Size (mm)	Dia (in)	Dia (mm)	LOF (in)	LOF (mm)	OAL (in)	OAL (mm)	Pack Qty	Min Qty
C70250	3/64	-	-	0.0469	1.19	0.5000	12.70	1.3750	34.92	12	12
C70251	1/16	-	-	0.0625	1.59	0.6250	15.88	1.6250	41.27	12	12
C70356	-	52	-	0.0635	1.61	0.6875	17.46	1.6875	42.86	12	12
C70355	-	51	-	0.0670	1.70	0.6875	17.46	1.6875	42.86	12	12
C70354	-	50	-	0.0700	1.78	0.6875	17.46	1.6875	42.86	12	12
C70353	-	49	-	0.0730	1.85	0.6875	17.46	1.6875	42.86	12	12
C70352	-	48	-	0.0760	1.93	0.6875	17.46	1.6875	42.86	12	12
C70252	5/64	-	-	0.0781	1.98	0.6875	17.46	1.6875	42.86	12	12
C70351	-	47	-	0.0785	1.99	0.6875	17.46	1.6875	42.86	12	12
C70350	-	46	-	0.0810	2.06	0.7500	19.05	1.7500	44.45	12	12
C70349	-	45	-	0.0820	2.08	0.7500	19.05	1.7500	44.45	12	12
C70348	-	44	-	0.0860	2.18	0.7500	19.05	1.7500	44.45	12	12
C70347	-	43	-	0.0890	2.26	0.7500	19.05	1.7500	44.45	12	12
C70346	-	42	-	0.0935	2.37	0.7500	19.05	1.7500	44.45	12	12
C70253	3/32	-	-	0.0938	2.38	0.7500	19.05	1.7500	44.45	12	12
C70345	-	41	-	0.0960	2.44	0.8125	20.64	1.8125	46.04	12	12
C70344	-	40	-	0.0980	2.49	0.8125	20.64	1.8125	46.04	12	12
C70343	-	39	-	0.0995	2.53	0.8125	20.64	1.8125	46.04	12	12
C70342	-	38	-	0.1015	2.58	0.8125	20.64	1.8125	46.04	12	12
C70341	-	37	-	0.1040	2.64	0.8125	20.64	1.8125	46.04	12	12
C70340	-	36	-	0.1065	2.71	0.8125	20.64	1.8125	46.04	12	12
C70254	7/64	-	-	0.1094	2.78	0.8125	20.64	1.8125	46.04	12	12
C70339	-	35	-	0.1100	2.79	0.8750	22.22	1.8750	47.63	12	12
C70338	-	34	-	0.1110	2.82	0.8750	22.22	1.8750	47.63	12	12
C70337	-	33	-	0.1130	2.87	0.8750	22.22	1.8750	47.63	12	12
C70336	-	32	-	0.1160	2.95	0.8750	22.22	1.8750	47.63	12	12
C70335	-	31	-	0.1200	3.05	0.8750	22.22	1.8750	47.63	12	12
C70255	1/8	-	-	0.1250	3.18	0.8750	22.22	1.8750	47.63	12	12
C70334	-	30	-	0.1285	3.26	0.9375	23.81	1.9375	49.21	12	12
C70333	-	29	-	0.1360	3.45	0.9375	23.81	1.9375	49.21	12	12
C70332	-	28	-	0.1405	3.57	0.9375	23.81	1.9375	49.21	12	12
C70256	9/64	-	-	0.1406	3.57	0.9375	23.81	1.9375	49.21	12	12
C70331	-	27	-	0.1440	3.66	1.0000	25.40	2.0625	52.39	12	12
C70330	-	26	-	0.1470	3.73	1.0000	25.40	2.0625	52.39	12	12
C70329	-	25	-	0.1495	3.80	1.0000	25.40	2.0625	52.39	12	12
C70328	-	24	-	0.1520	3.86	1.0000	25.40	2.0625	52.39	12	12
C70327	-	23	-	0.1540	3.91	1.0000	25.40	2.0625	52.39	12	12
C70257	5/32	-	-	0.1563	3.97	1.0000	25.40	2.0625	52.39	12	12
C70326	-	22	-	0.1570	3.99	1.0625	26.99	2.1250	53.97	12	12
C70325	-	21	-	0.1590	4.04	1.0625	26.99	2.1250	53.97	12	12
C70324	-	20	-	0.1610	4.09	1.0625	26.99	2.1250	53.97	12	12
C70323	-	19	-	0.1660	4.22	1.0625	26.99	2.1250	53.97	12	12
C70322	-	18	-	0.1695	4.31	1.0625	26.99	2.1250	53.97	12	12
C70258	11/64	-	-	0.1719	4.37	1.0625	26.99	2.1250	53.97	12	12
C70321	-	17	-	0.1730	4.39	1.1250	28.57	2.1875	55.56	12	12
C70320	-	16	-	0.1770	4.50	1.1250	28.57	2.1875	55.56	12	12
C70319	-	15	-	0.1800	4.57	1.1250	28.57	2.1875	55.56	12	12
C70318	-	14	-	0.1820	4.62	1.1250	28.57	2.1875	55.56	12	12
C70317	-	13	4.70	0.1850	4.70	1.1250	28.57	2.1875	55.56	12	12
C70259	3/16	-	-	0.1875	4.76	1.1250	28.57	2.1875	55.56	12	12
C70316	-	12	4.80	0.1890	4.80	1.1875	30.16	2.2500	57.15	12	12
C70315	-	11	-	0.1910	4.85	1.1875	30.16	2.2500	57.15	12	12
C70314	-	10	-	0.1935	4.91	1.1875	30.16	2.2500	57.15	12	12
C70313	-	9	-	0.1960	4.98	1.1875	30.16	2.2500	57.15	12	12
C70312	-	8	-	0.1990	5.05	1.1875	30.16	2.2500	57.15	12	12
C70311	-	7	-	0.2010	5.11	1.1875	30.16	2.2500	57.15	12	12
C70260	13/64	-	-	0.2031	5.16	1.1875	30.16	2.2500	57.15	12	12
C70310	-	6	-	0.2040	5.18	1.2500	31.75	2.3750	60.32	12	12
C70309	-	5	-	0.2055	5.22	1.2500	31.75	2.3750	60.32	12	12
C70308	-	4	-	0.2090	5.31	1.2500	31.75	2.3750	60.32	12	12
C70307	-	3	-	0.2130	5.41	1.2500	31.75	2.3750	60.32	12	12
C70261	7/32	-	-	0.2188	5.56	1.2500	31.75	2.3750	60.32	12	12
C70306	-	2	-	0.2210	5.61	1.3125	33.34	2.4375	61.91	12	12
C70305	-	1	-	0.2280	5.79	1.3125	33.34	2.4375	61.91	12	12
C70280	-	A	-	0.2340	5.94	1.3125	33.34	2.4375	61.91	12	12
C70262	15/64	-	-	0.2344	5.95	1.3125	33.34	2.4375	61.91	12	12
C70281	-	B	-	0.2380	6.05	1.3750	34.92	2.5000	63.50	12	12
C70282	-	C	-	0.2420	6.15	1.3750	34.92	2.5000	63.50	12	12
C70283	-	D	-	0.2460	6.25	1.3750	34.92	2.5000	63.50	12	12
C70263	1/4	E	-	0.2500	6.35	1.3750	34.92	2.5000	63.50	12	12
C70284	-	F	-	0.2570	6.53	1.4375	36.51	2.6250	66.67	12	12
C70285	-	G	-	0.2610	6.63	1.4375	36.51	2.6250	66.67	12	12
C70264	17/64	-	-	0.2656	6.75	1.4375	36.51	2.6250	66.67	12	12
C70286	-	H	-	0.2660	6.76	1.5000	38.10	2.6875	68.26	12	12
C70287	-	I	-	0.2720	6.91	1.5000	38.10	2.6875	68.26	12	12
C70288	-	J	-	0.2770	7.04	1.5000	38.10	2.6875	68.26	12	12
C70289	-	K	-	0.2810	7.14	1.5000	38.10	2.6875	68.26	12	12
C70265	9/32	-	-	0.2813	7.15	1.5000	38.10	2.6875	68.26	12	12
C70290	-	L	-	0.2900	7.37	1.5625	39.69	2.7500	69.85	12	12
C70291	-	M	-	0.2950	7.49	1.5625	39.69	2.7500	69.85	6	6
C70266	19/64	-	-	0.2969	7.54	1.5625	39.69	2.7500	69.85	6	6
C70292	-	N	-	0.3020	7.67	1.6250	41.27	2.8125	71.44	6	6
C70267	5/16	-	-	0.3125	7.94	1.6250	41.27	2.8125	71.44	6	6
C70293	-	O	-	0.3160	8.03	1.6875	42.86	2.9375	74.61	6	6
C70294	-	P	-	0.3230	8.20	1.6875	42.86	2.9375	74.61	6	6
C70268	21/64	-	-	0.3281	8.33	1.6875	42.86	2.9375	74.61	6	6
C70295	-	Q	-	0.3320	8.43	1.6875	42.86	3.0000	76.20	6	6
C70296	-	R	-	0.3390	8.61	1.6875	42.86	3.0000	76.20	6	6
C70269	11/32	-	-	0.3438	8.73	1.6875	42.86	3.0000	76.20	6	6
C70297	-	S	-	0.3480	8.84	1.7500	44.45	3.0625	77.79	6	6
C70298	-	T	-	0.3580	9.09	1.7500	44.45	3.0625	77.79	6	6
C70270	23/64	-	-	0.3594	9.13	1.7500	44.45	3.0625	77.79	6	6
C70299	-	U	-	0.3680	9.35	1.8125	46.04	3.1250	79.38	6	6
C70271	3/8	-	-	0.3750	9.53	1.8125	46.04	3.1250	79.38	6	6
C70300	-	V	-	0.3770	9.58	1.8750	47.63	3.2500	82.55	6	6
C70301	-	W	-	0.3860	9.80	1.8750	47.63	3.2500	82.55	6	6
C70272	25/64	-	-	0.3906	9.92	1.8750	47.63	3.2500	82.55	6	6
C70302	-	X	-	0.3970	10.08	1.9375	49.21	3.3125	84.14	6	6
C70303	-	Y	-	0.4040	10.26	1.9375	49.21	3.3125	84.14	6	6
C70273	13/32	-	-	0.4063	10.32	1.9375	49.21	3.3125	84.14	6	6
C70304	-	Z	-	0.4130	10.49	2.0000	50.80	3.3750	85.72	6	6
C70274	27/64	-	-	0.4219	10.72	2.0000	50.80	3.3750	85.72	6	6
C70275	7/16	-	-	0.4375	11.11	2.0625	52.39	3.4375	87.31	6	6
C70276	29/64	-	-	0.4531	11.51	2.1250	53.97	3.5625	90.49	6	6
C70277	15/32	-	-	0.4688	11.91	2.1250	53.97	3.6250	92.07	6	6
C70278	31/64	-	-	0.4844	12.30	2.1875	55.56	3.6875	93.66	6	6
C70279	1/2	-	-	0.5000	12.70	2.2500	57.15	3.7500	95.25	6	6
